ZERO SPEED SWITCHES

Stop an entire operation if one machine fails.

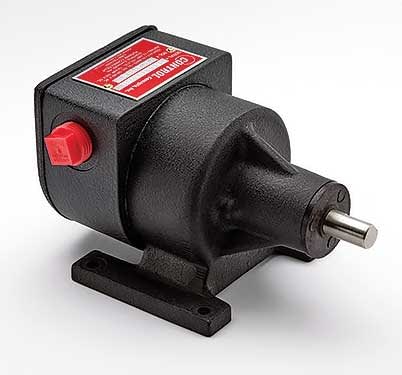

4100 Series Zero Speed Switch

Operating Range: 4 to 1800 RPM

The 4100 Series Zero Speed Switches are electromechanical rotary motion controls requiring no electrical input to operate. These shaft-driven devices can let you know if equipment is running too fast, too slow, or not at all. These UL-approved speed switches can be interlocked as part of a conveyor sysem to insure that if one machine fails, the entire operation will stop, avoiding an expensive and time-consuming pile-up of material.

  • For shaft input speeds of 4 to 1800 RPM.
  • Will operate in temperatures ranging from -40° F to +250° F (-40° C to +482° C).
  • NEMA 4/4X housings are painted with an epoxy-based powder coat to provide corrosion resistance as well as protection against dust, rain and hose-directed water.

Speed Switch devices coupled to a corresponding shaft, must be properly mounted and aligned to avoid putting extra load on motor bearings, which may cause premature failure. The use of installation accessories such as Mounting Brackets and K-Couplings provide a secure foundation and eliminate misalignment connection problems. Need assistance choosing the appropriate speed switch? Fill out the Application Data Sheet and a Sales Engineer will help determine which switch is right for your specific application. Dazic® Application Data Sheet

4100 Series
Driver V-belt, Roller wheel, Chain drive or Sprocket
Shaft Diameter 1/2″ (1.27 cm)
Operating Range 24 to 1800 RPM
Driver TorqueRequired .0208 ft-lb (4 in-oz) (.0282 Nm)
Temperature Tolerance -40°F to +250°F (-40°C to +121°C)
Housing Options Aluminum (AL) or Cast Iron (CI)
NEMA Rating 4/4x
Mounting Options Base Mount
Dimensions (L x W x H) 6.95″ x 4.25″ x 3.93″ (17.65 cm x 10.80 cm x 9.98 cm)
Wiring Contact Options SPDT, DPDT, SPDT(2)
Weight AL – 4 lbs. (1.81 kg)      CI – 8 lbs. (3.63 kg)
Speed Switch Input (RPM) (Application Running Speed) Approximate Contact Operating Speeds (RPM) Contact Type
Start-Up Trip-Point Upon Initial Speed Switch Acceleration (RPM) Drop-Out Point On Shaft Speed Loss (RPM) SPDT Single Pole, Double Throw DPDT Double Pole, Double Throw SPDT(2) Direction Indicating
MIN. RPM MAX. RPM SLOW LOSS RAPID LOSS Model No. Model No. Model No.
NOT FIELD ADJUSTABLE
24 2000 14 to 19 10 RPM 0 RPM 4120 4122 4130
15 200 8 to 11 Approx. 2 Sec. After Shaft Rotation Failure 4120-1 4122-1 4130-1
8 100 5 to 7 Approx. 3 Sec. After Shaft Rotation Failure 4120-5 4122-5 4130-5
4 50 2 to 3 Approx. 5 Sec. After Shaft Rotation Failure 4120-10 4122-10 4130-10
FIELD ADJUSTABLE
30 1800 25 to 70 30-40% Below Trip Point 0 4120-A1 4122-A1 4130-A1
75 1800 80 to 140 30-40% Below Trip Point 0 4120-A2 4122-A2 4130-A2
160 1800 130 to 300 30-40% Below Trip Point 0 4120-A3 4122-A3 4130-A3
240 1800 200 to 600 30-40% Below Trip Point 0 4120-A4 4122-A4 4130-A4
15 200 10 to 45 30-40% Below Trip Point 0 4120-A11 4122-A11 4130-A11
7 100 5 to 15 30-40% Below Trip Point 0 4120-A15 4122-A15 4130-A15

Swtiches can be mounted in any position but they must be aligned and concentric with the corresponding drive shaft.

How To Order

Housing Material Model No. Mounting Style
(AL or CI)   41xx-xx   (B)

For example: Model 4120-1 with Cast Iron housing and Base mount = CI-4120-1-B

Dazic Speed Switch 4100 series

SPDT

Single Pole, Double Throw

click to enlarge

DPDT

Double Pole, Double Throw

click to enlarge

SPDT(2)

Direction Indicating

click to enlarge
